IDS 805

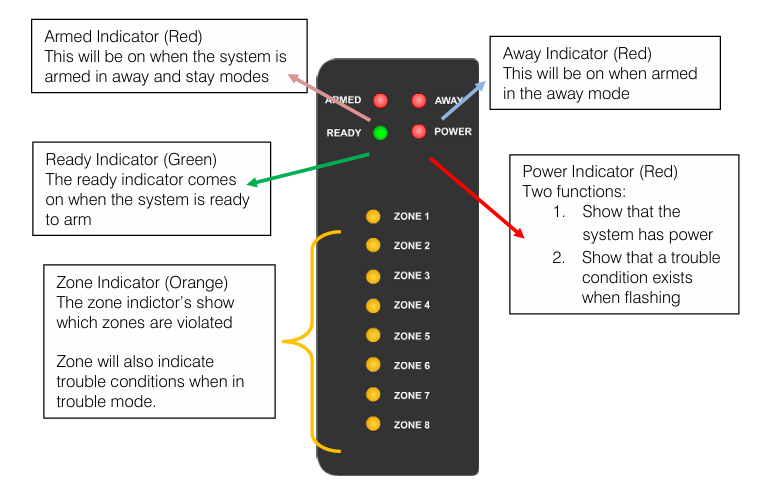

Understanding Keypad Indicators

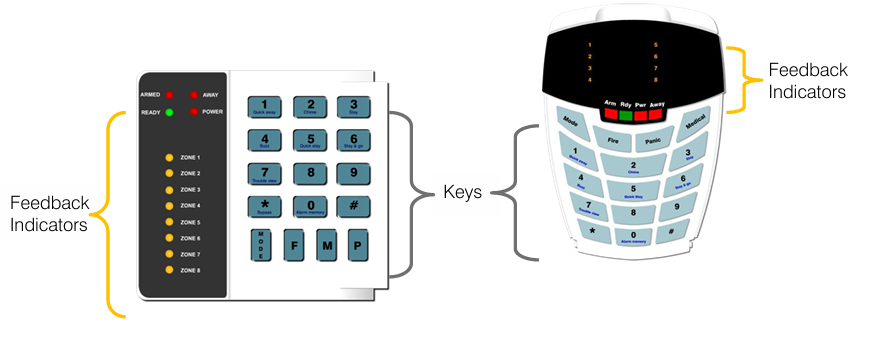

Feedback Indicators

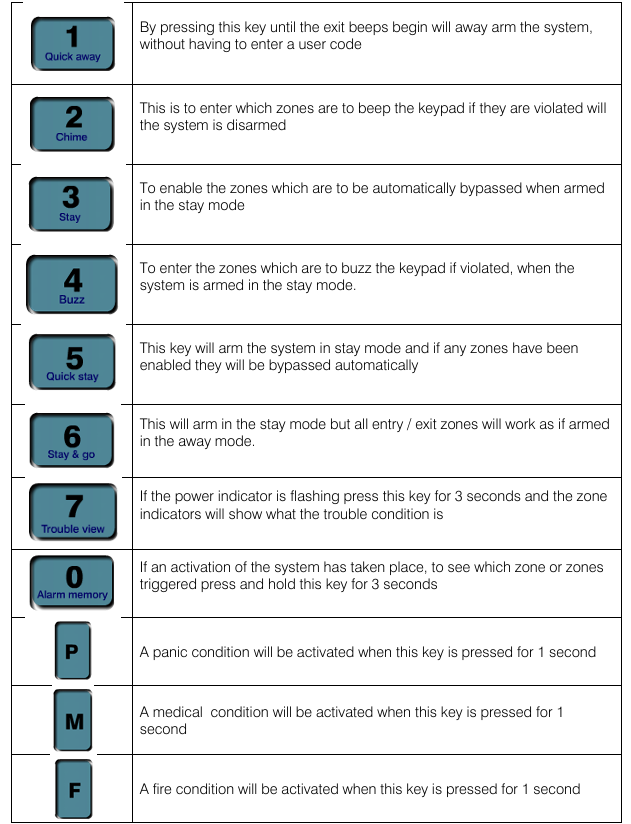

Keys
Away Arming
Away arming is when the system arms with all entry / exit zones actively monitoring any violations, to trigger the entry / exit cycle. The entry / exit cycle is the time programmed to allow the person to either exit or enter and insert a user code, without the system going into an alarm state.
There are two ways of arming the system:
- Enter a user code and exit through the entry / exit zone during the arm cycle.
- Press and hold the [1] key until the exit delay begins and then exit.
Stay Arming
Stay arming is for the protection of the people within the building. This mode allows the automatic bypassing of internal detectors, while arming external detectors allowing the people inside to freely move around but if someone tries to enter or exit the alarm is triggered.
Bypassing Zones
Bypassing a zone is disabling the zone. Normally used if a zone is faulty and the system needs to be armed but will not due to the zone being violated.
Chime Zones
There are two ways of arming in the away mode:
- Press and hold the [5] key until armed. (The stay arm key can be disabled)
- Enter a user code and do not exit the building through an entry / exit zone. (This option can be disabled.)
Bypassing Zones
Bypassing a zone is disabling the zone. Normally used if a zone is faulty and the system needs to be armed but will not due to the zone being violated.
To bypass a zone:
- Press the [*] then [zone number] the zone light will stop flashing and remain on. (If more than one zone needs bypassing, press next [zone number]...until complete)
- Once complete press [#] to exit. (All bypassed zone LEDs will be on steady)
To clear a bypassed zones, follow the same steps.
Note: All bypassed zones will be cleared when the alarm is disarmed.
Chime Zones
Chime zones are zones that have been selected to beep the keypad if opened while the system is disarmed. This allows a person to be alerted if the violation takes place in an area that has nobody to monitor that area.
Stay Zones
To enable chime zones:
- Press and hold the [3] key for 3 seconds
- Press the [zone number] select all zones required to be chime zones.
- When complete press [#]
To remove a chime zone, follow the same steps.
Stay Zones
These are the zones that will be automatically disabled when the system arms in the stay mode.
To create stay zones:
- Press and hold the [3] key for 3 seconds
- Press the [zone number] keep selecting all required zones
- Once complete press [#]
Two stay profiles can be created
To enter into the second profile:
- Press [Mode] then [9] then [profile number] [*]
- Create the stay zones as above.
Note:
When in this mode and zones are flashing, this indicates buzz zones.
When arming in the stay mode, the profile that is selected, via the previous procedure will be used.
To remove chime zones follow the same steps.
